Used GE Marquette Cardioserv Defibrillator Machine Parts Front Panel

Used GE Marquette Cardioserv Defibrillator Front Panel With Good Condition For Hospital

1 Defibrillator paddles

2 button to trigger the defibrillation shock – together with button (8)

3 keys to adjust the LCD contrast. Press both keys simultaneously to obtain a screen copy.

4 Energy selector, on/off switch

5 key charges the device (manual mode) and triggers a defibrillation shock – used with key (6).

When using internal paddles or bonded electrodes, this key assumes the function of button (8).

6 Defibrillation shock delivery button - with button (5). When using internal paddles or stick electrodes, this button assumes the function of button (2).

7 Five selection keys from F1 to F5, whose function changes with the display of the menu. The function of the corresponding button is indicated by an icon or label at the bottom of the LCD screen. From the main menu that appears at startup, it is possible to access submenus from which other options can be selected. The back function takes you to the next higher menu level. If no key is pressed for about 30 seconds, the main menu will automatically reappear

8 Button charges device (manual mode) and triggers defibrillation shock - together with button (2)

9button to start and stop the recorder.

10 key to switch to the synchronized operating mode (section 5 “Cardioversion”)

11 key to start and stop the recorder. This key assumes the function of button (9) when internal paddles or adhesive electrodes are used.

12 Green indicator is lit when the defibrillator operates on line power.

13 Yellow indicator is lit when the defibrillator battery is being charged.

14 Connection for defibrillator paddles (controls 15 to 18 only on models with pacemaker)

15 Keys to adjust the pacer output

16 Keys to adjust pacer rate

17 Pacing mode selection key (demand/fixed rate)

18 Key to enable and disable the pacemaker

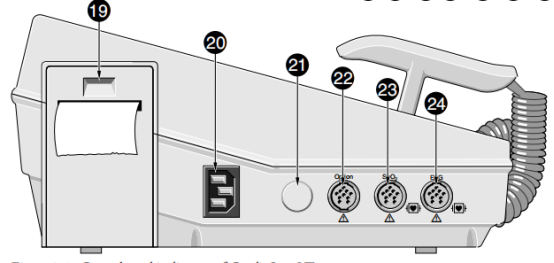

19 Aperture to open the paper compartment

20 Connector for power cord

21 Unassigned

22 1-Volt ECG output

23 Connector for SpO2 sensor

24 Connector for patient cable (ECG signal input)

FAQ :

• what’s your MOQ

Our MOQ is one piece .Welcome to take samples to test our quality .

• When can i receive my orders ?

Usually it will take around 2-3 working days to prepare for the order after payment and you will receive it around 5-7 working days .

• Can you ship to my Chinese forwarder ?

Sure .We can ship to your Chinese forwarder free .

• Can i have a test video before placing order?

Sure .Video can be sent as well before the shipment

If you're interested in Used GE Marquette Cardioserv Defibrillator Front Panel With Good Condition For Hospital ,feel free to contact us .Thank you .
